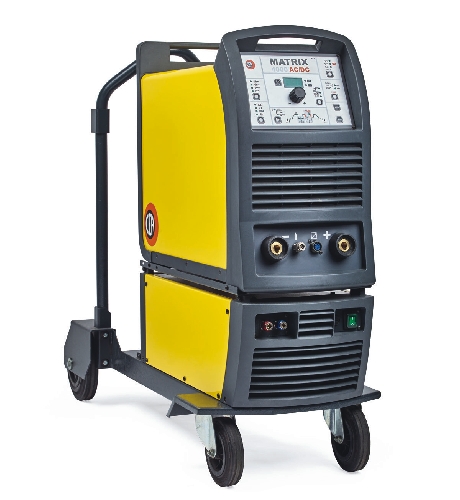

MATRIX 4100 AC/DC MATRIX 5100 AC/DC

TEHNIČNI PODATKI
MATRIX
4100 AC/DC 5100 AC/DC
Tri faze 50/60 Hz V  +15%
-20%
400 400
Priključna moč @ I2 Max kVA 19 26
Varovalka (l2 @ 100%) A 32 40
Močnostni faktor / cos φ 0,65/0,99 0,70/0,99
Učinkovitost 0,82 0,82
Napetost v odprtem krogu V 70 70
Območje amperaže A 5 – 400 5 – 500
Intermitenca (40°C) A 100% 350 380
A 60% 400 500
A 35%
Standard EN 60974-1 • EN 60974-3 • EN 60974-10
Klasa zaščite IP 23 S 23 S
Klasa izolacije H H
Dimenzije  mm 660 660
 mm 290 290
 mm 515 515
Teža kg 47 51
Kategorija:

Opis

Na podlagi najnovejše IGBT inverterske tehnologije so TIG viri moči z visokofrekvenčnim udarcem loka serije MATRIX opremljeni z inovativno digitalno ploščo za popoln nadzor vseh varilnih parametrov. Odlične tehnične lastnosti teh varilnih strojev skupaj z lastnostjo digitalnega krmiljenja omogočajo visokokakovostno TIG varjenje, primerno za najstrožje industrijske namene in vzdrževanje. Ti visoko napredni tehnološki viri energije so robustni in uporabniku prijazni: MATRIX AC / DC je mogoče uporabiti tudi za TIG varjenje vseh kovin, vključno z aluminijem in njegovimi zlitinami. Viri napajanja serije MATRIX nudijo odlične zmogljivosti tudi pri MMA varjenju z najtežjimi osnovnimi in celuloznimi elektrodami.

coldTACK
Innovative spot welding device to achieve precise and safe joining with a minimal thermal input. “Multi-coldTACK” function grants cold spotting in a rapid sequence, thus further widening the benefits of the single spot. Thanks to “Perfect-Point” function, coldTACK allows to obtain the most precise spot positioning.

CYCLE
Function allows, by simply pressing the torch trigger, continuously switching between two current values, previously preselected. This function is most suitable for welding different thickness profiles, requiring a continuous current adjustment change. In welding aluminium, the ability of using a higher start current favours the workpiece preheating.

EASY PULSE
SYN “EASY PULSE”- SYN facility, in function of the chosen peak current, generates, in a simple and automatic way, an adequate pulse frequency and base current, both readjustable in a synergic way. Pulse parameter values preselected in the control will save setting time, by ensuring the best possible pulse parameter combinations, ideal for less skilled welders.

FEATURES:

  • Digital adjustment of all the welding parameters
  • Digital Ammeter and Voltmeter with welding current presetting and Hold Function of the last read value
  • Digital ammeter with welding current presetting
  • Digital display for the presetting of the welding parameters
  • Full monitoring of the welding parameters
  • Welding process selector: TIG AC • TIG DC • TIG DC “Lift” • MMA
  • Welding mode selector: 2 Stroke • 4 Stroke • Cycle • Spot Timer
  • Personalised welding program storing and recalling
  • Pulse TIG welding adjustable from 0,5 up to 2000 Hz with available “EASY PULSE” facility
  • AC square wave balance and Balance Plus
  • AC square wave frequency adjustment
  • Tungsten electrode diameter presetting for a better control of the arc striking and arc dynamics
  • Wave Selector: Square • Mixed • Sinusoidal •Triangular
